Check out our Tube Straightening Machines for sale:

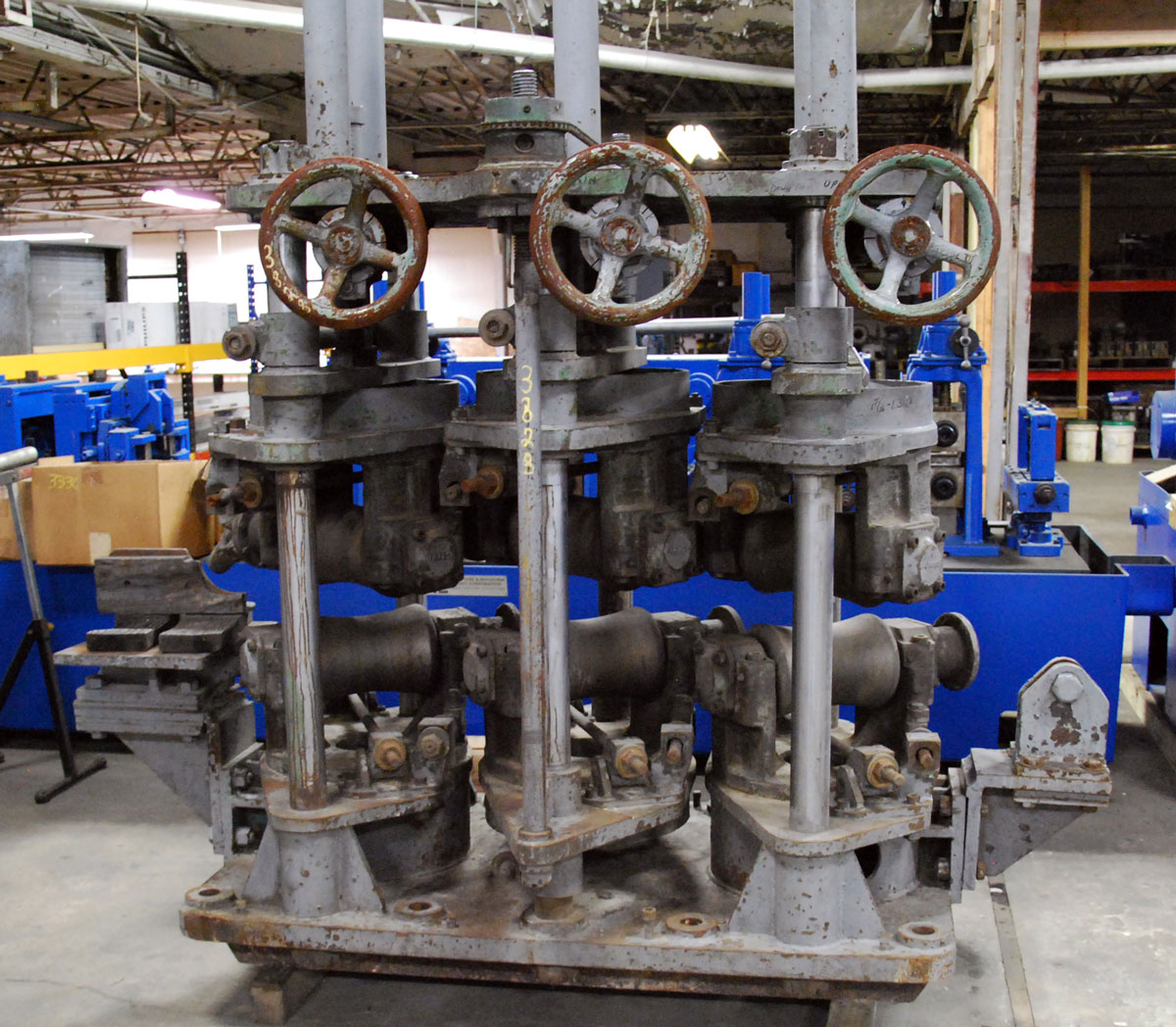

Manufacturer: MACKINTOSH-HEMPHILL
Roll Configuration: 3 Over 3
Number of Rolls: 6
Max Tube Dia., Nominal: 1-3/4" (44.4 mm)
Min Tube Dia.: 5/16" (8 mm)
Max Production Speed: 120 FPM
Roll Size: Center Diameter: 3-3/4" (96 mm)
Length: 6" (152 mm)
• Top (3) Rolls Have Vertical Adjustment
• All (6) Rolls Have Controls for Offset Arrangement of Rolls
• Splitter Box Driving Individual Roll Through Universal Shafts
• 2 Motors, 5 HP AC (4-Speed Shiftboxes)

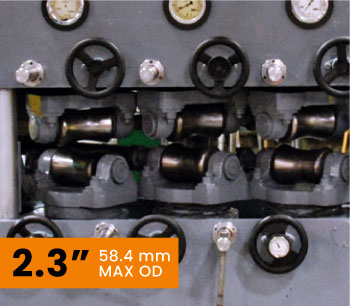

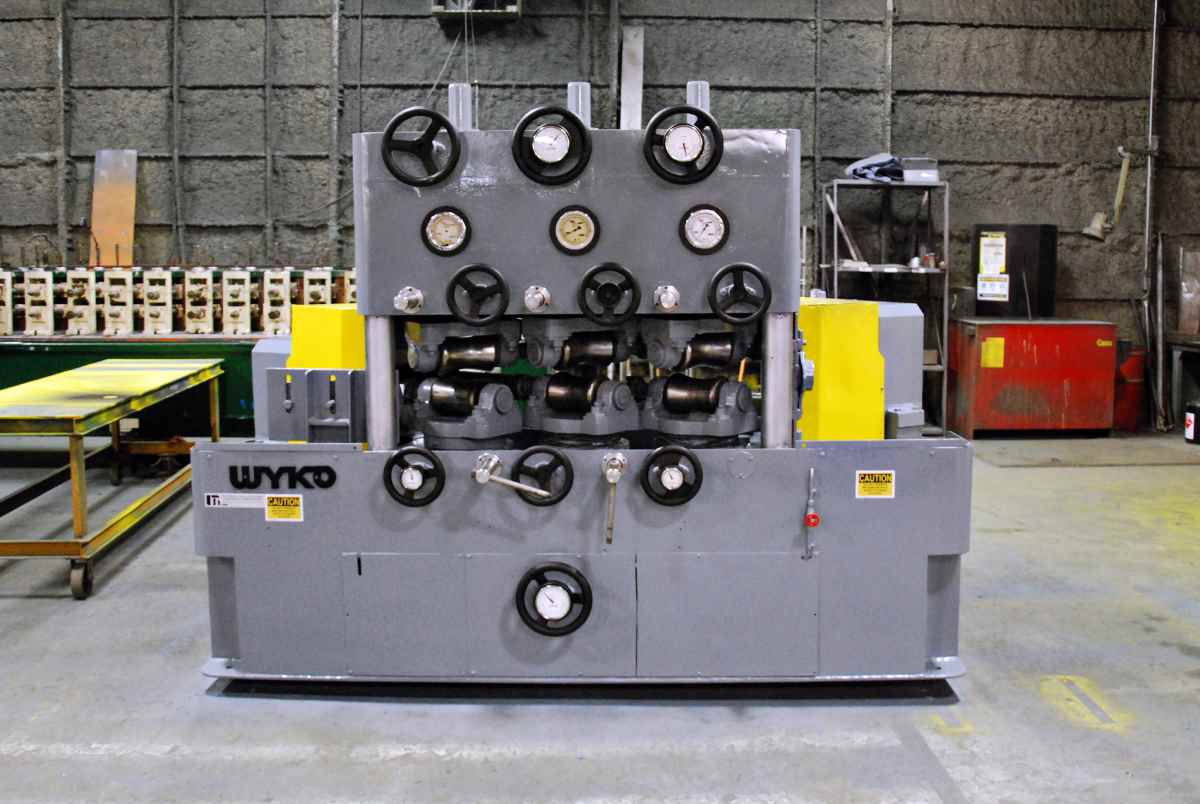

Manufacturer: WYKO
Number of Rolls: 6 (3 Over 3)
Max Diameter: 2.3" (58.4 mm)
Min Diameter: 1/2" (12.7 mm)
Max Wall Thickness: .197" (5.00 mm)
Max Dia. Admitted: 2.30" (58.4 mm)
Speed: 200 – 400 FPM (60 – 120 MPM)
Roll Dimensions: 5.5" x 7.8"
Apx. Passline: 39" to bottom of tube
Equipped With:
• Push Button Panel
• Powered Entry Table
• Exit Table
• (2) Motors

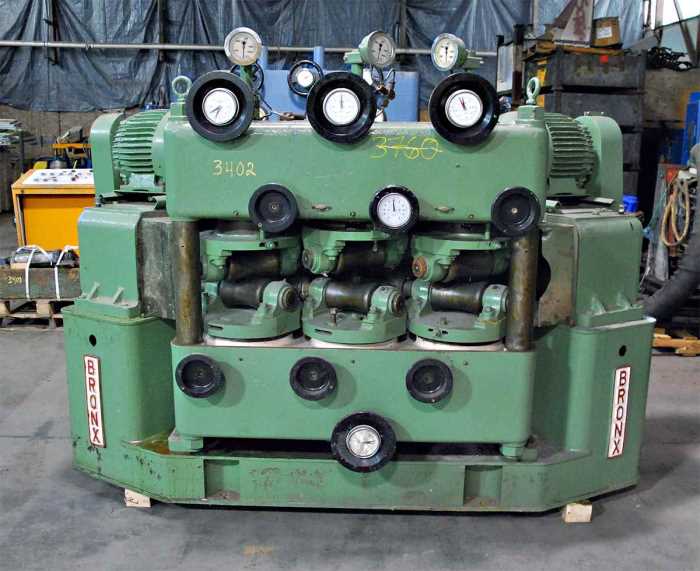

Manufacturer: BRONX
6-Roll Vertically Opposed
Cross Roll Design
Max Diameter: 2" (50.8 mm)
Min Diameter: .394" (10.0 mm)
Max Wall Thickness: .197" (5.00 mm)
Max Diameter Admitted: 3" (76.2 mm)
Feed Direction: Right to Left
Roll Size: 4" Diameter x 8" Long
Manual Roll Adj. (approx.): 3" (76.2 mm)
Operating Speed: 60 – 120 MPM
Equipped With:
• (2) Motors

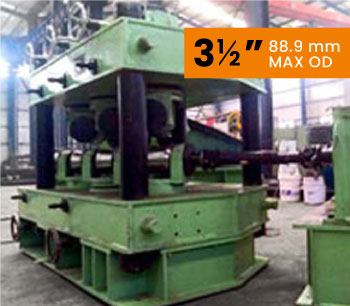

Manufacturer: TAIYUAN HUAYE EQUIPMENT
Roll Configuration: 3 Over 3
Number of Driven Rolls: 6
Max Diameter: 3-1/2" (88.9 mm)
Min Diameter: 1/2" (12.7 mm)
Max Wall Thickness: .158" (4.01 mm)
Speed: 98 – 230 FPM (30 – 70 MPM)
Throat Diameter of Rolls: 5.3" (136 mm)
Overall Length of Rolls: 9" (230 mm)
Equipped With:
• Vertical Upper Roll Adjustment
• Angular Adjustment
• Drive Shafts & Gearboxes
