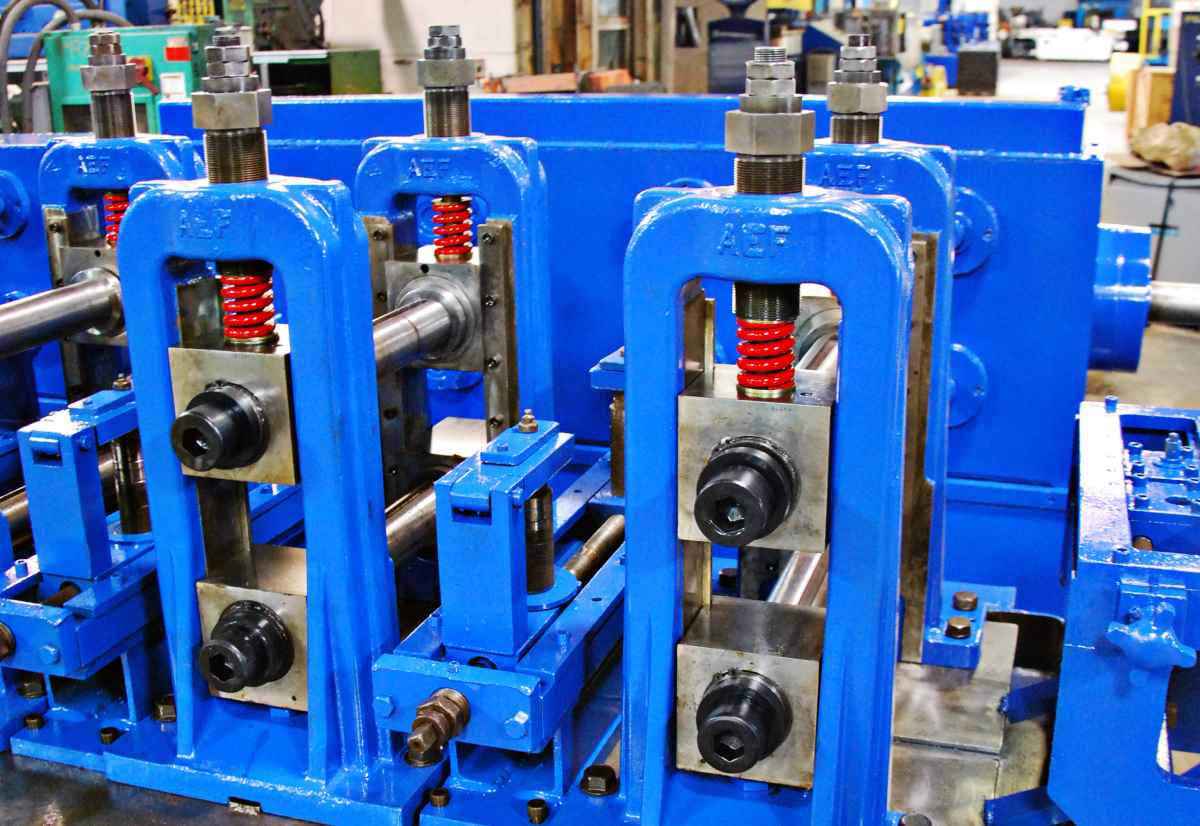

3" (76.2 mm) x .134" (3.40 mm) AEF TUBE MILL FOR SALE

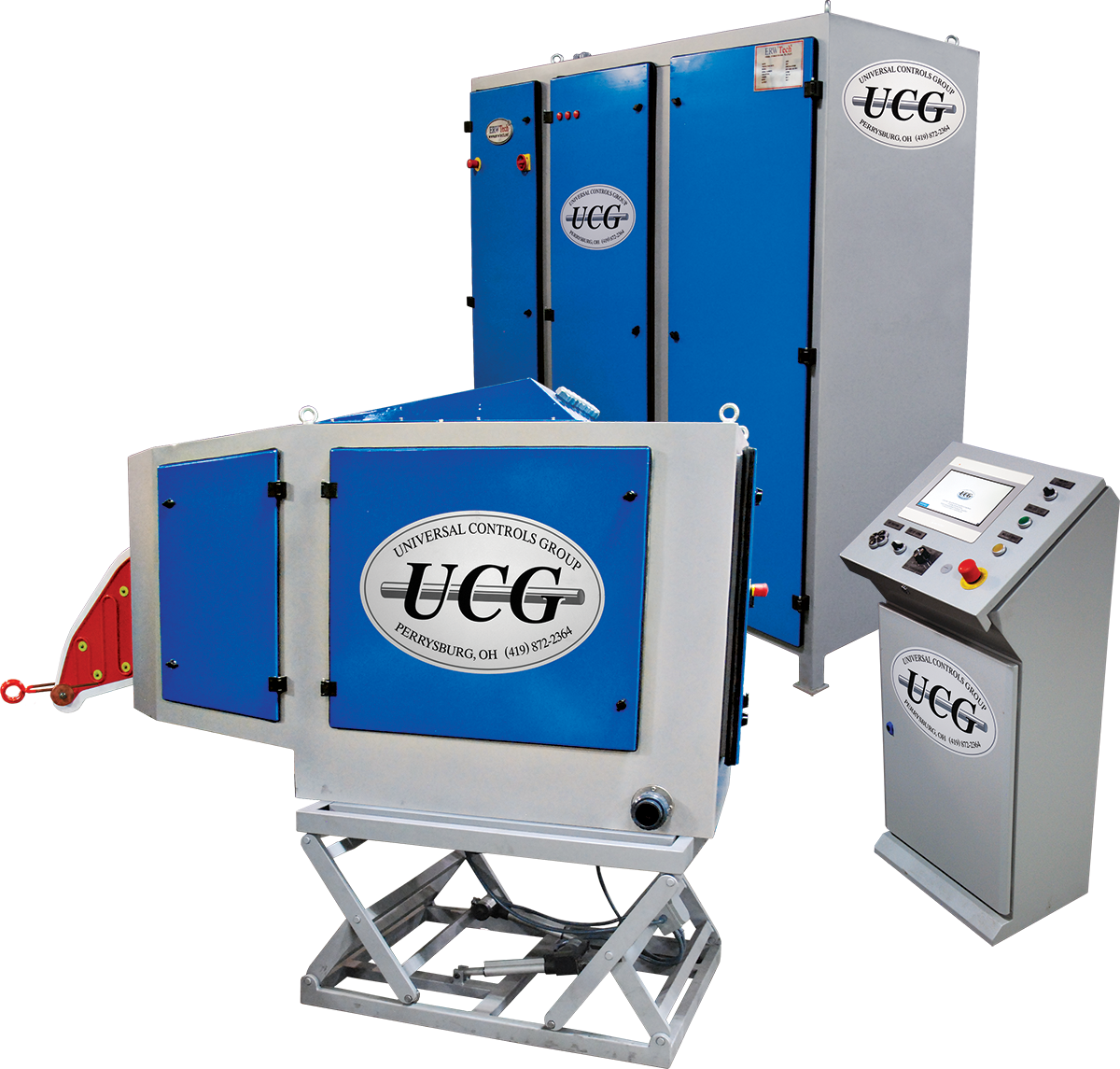

NEW! 250 KW Solid State High Frequency Welder

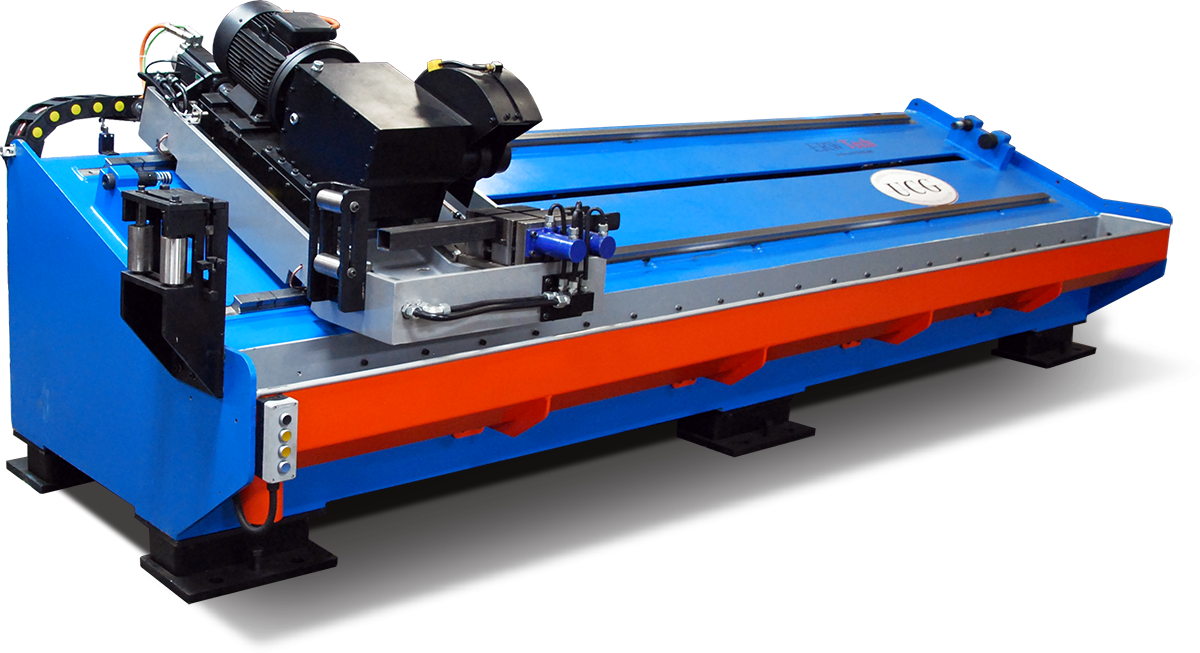

NEW! 3-1/2" (89 mm) High Speed Flying Cold Saw

Stock Number: 3336
Model Number: E-300
Tube O.D. Range: 3/4" - 3" (19 - 76.2 mm)
Wall Range: .035" - .134" (.889 - 3.40 mm)
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
Maximum Mill Speed: 300 FPM Max. Gear In Speed, No Load
Driven Spindle Diameter: 2.5" (63.5 mm)
Line Direction: Right to Left

Forming Mill:
Entry Guide Unit w/Edge Conditioning
(4) Driven Breakdown Stands
(6) Idle Side Roll Units
(3) Driven Fin Stands
75 HP Forming Motor

Welding Section:
Guide Roll Unit
3-Roll Weld Pressure Unit
Bead Winder
Roto Scarf Unit
Ironing Stand
18' Coolant Section

Sizing Mill:
(4) Driven Sizing Stands
(4) Idle Side Roll Units
(2) Single-Sided 4-Roll Turksheads
60 HP Sizing Motor

20' Run Out Table

Electrical:
Drive Cabinet
Push Button Station

Tooling:
2-3/4" x 1" Rectangle (69.85 mm x 25.4 mm)

Location:
Universal Warehouse, Perrysburg, Ohio
